| Product code | Packing specification | Colou | Viscosity | Maximum thread diameter | Curing rate | Temperature range | Maximum seal pressure | Peculiarity |

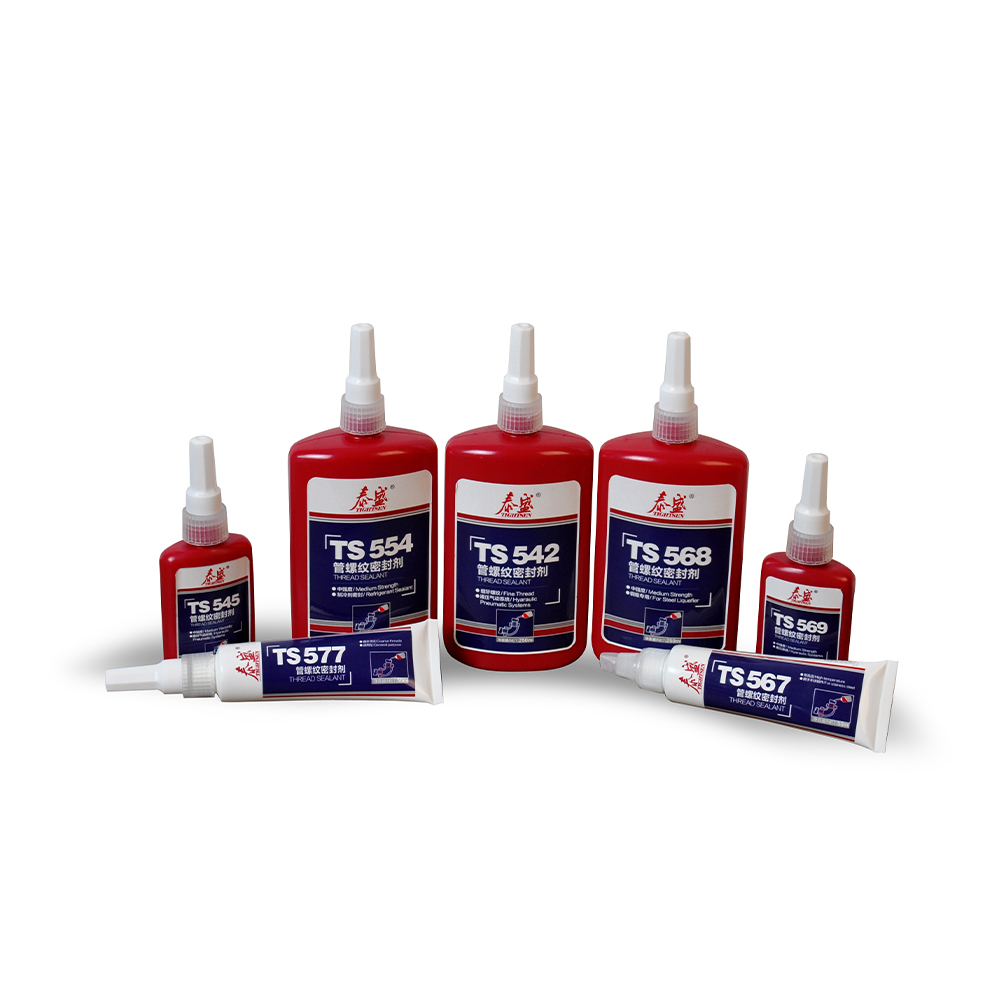

| TS545 | 50ml/250ml | purple. | 9000~20000 | M36 | 40min/24hrs | -50~150 | 69 | ◎ Fast curing, low strength ◎ Does not pollute the hydraulic system ◎ Used to seal and lock high-pressure hydraulic systems and screw threads below M36 ◎ No stuffing. Does not block valves or filtration systems |
| TS554 | 50ml/250ml | red. | 1500~3500 | M80 | 40min/24hrs | -50~150 | 69 | ◎ Resistant to chemical media, especially suitable for the sealing of R11, R12 refrigerated pipeline system ◎ Used for pipe thread sealing of refrigeration equipment below M80 ◎ Can be used to seal pipe threads in corrosive chemical systems |
| TS567 | 50ml/250ml | 白色 | 300000~700000 | M80 | 30min/24hrs | -50~200 | 69 | ◎ High viscosity, instant sealing. For thread sealing up to M80. ◎ Can withstand 200℃ high temperature, and has excellent solvent resistance, can lock and seal high pressure conical pipe threads and joints, can also be used for stainless steel surface. ◎ Can be disassembled with tools. |
| TS577 | 50ml/250ml | yellow. | 17000~31000 | M80 | 10min/24hrs | -50~150 | 69 | ◎ Thixotropy, high viscosity, fast curing, medium strength. ◎ For M80 stainless steel high pressure conical and cylindrical pipe threads. ◎ Allowed for drinking water systems. |
